The Pulau Tekong Polder, a groundbreaking land reclamation project on an offshore island in Singapore, has paved the way for the country’s first polder, reclaiming about 800 hectares of land. Constructed by the Boskalis Penta Ocean Joint Venture, this project employs the innovative ‘empoldering’ method, a first for Singapore.

Unlike traditional land reclamation, which involves infilling with sand, the empoldering approach creates a low-lying tract of land, known as a polder, by constructing a dyke around the area and draining water from it. The dyke shields the polder from the sea and water levels are controlled by a network of drains and pumps. This significantly reduces the amount of fill material required, leading to lower construction costs.

As part of the project, a stormwater collection pond within the polder was constructed to collect excess stormwater. Various floating equipment and barges were used to deepen this large body of water. Once it was completed, the equipment and barges – now landlocked – needed to be retrieved and relocated for continued operations.

A total of twelve barges, ranging in weight from 680 to 990 tons, had to be recovered from the stormwater collection pond, transported across the newly built haul road to the dyke, and launched back into the sea, a complex undertaking requiring advanced technical expertise and specialised equipment.

Mammoet was selected for the task due to its extensive experience and successful track record on similar projects worldwide, particularly in using airbags and winches for vessel launching. A team of local and international experts was assembled, bringing a wealth of knowledge to the site.

The project advanced in carefully planned phases. Mammoet used 68 airbags and four winches, with capacities ranging from 60 to 85 tons, to retrieve and launch each barge from the designated pond. Precision and careful management were essential to ensuring the safe extraction of the barges.

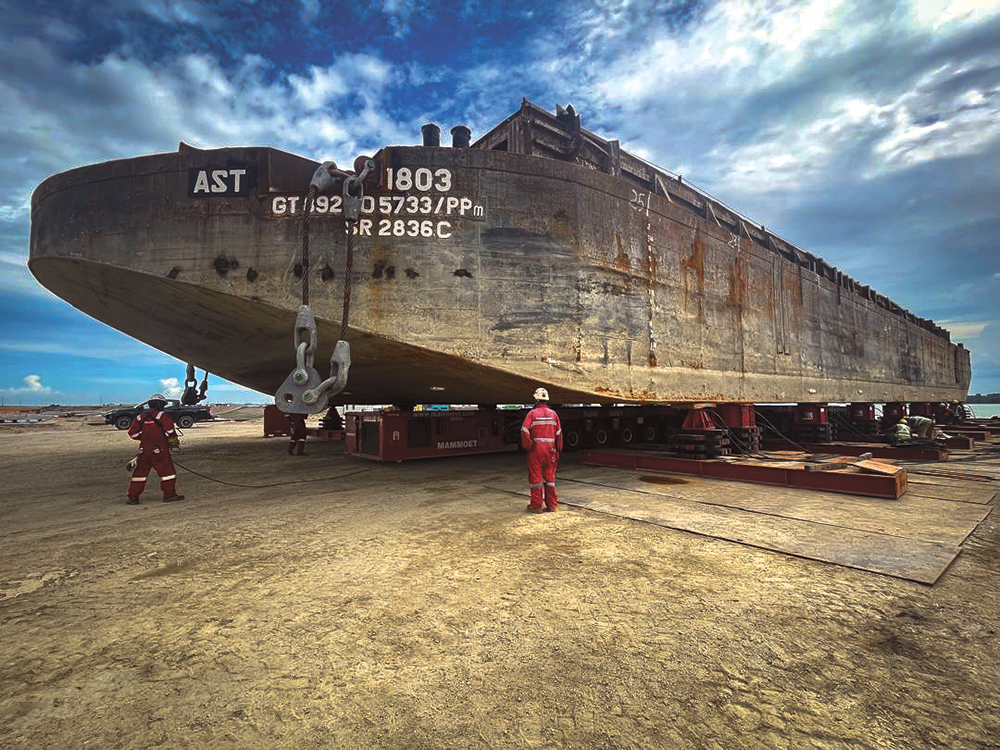

Airbags were placed under the bow of each barge, and once all cables were connected, two winches pulled the barge out of the water to a point where 18 climbing jacks were positioned. Once the barge was retrieved, it was jacked up to allow the airbags to be removed and self-propelled modular transporters (SPMTs) were inserted underneath. The SPMTs then transported each barge to the launch area to be set afloat. The launch process mirrored the retrieval operation, and this was repeated for all twelve barges.

Despite unforeseen weather conditions, Mammoet adhered to a strict schedule, demonstrating agility and commitment. The results were impressive. Mammoet not only met the tight deadlines but also played a key role in a transformative project that increased Singapore’s landmass. “We take immense pride in our role within the Tekong Polder project. By leveraging our global expertise, we helped enhance Singapore’s geographical footprint,” said Anandan Lokantham, sales manager for Mammoet Projects AMEA.

For more information contact Mammoet Global, +31 622 63 5062, [email protected], www.mammoet.com
