Why and how pressure gauges should be calibrated
3rd Quarter 2017, Pneumatic systems & components


Pressure gauge calibration is the comparison of measurement values of a unit with those of a more accurate calibrated reference instrument. This instrument is normally traceable to National Standards (NMISA). The purpose of calibration is to maintain the quality and accuracy of measurement and ensure the proper working of an instrument.

Even the highest quality instruments are subject to drift over time, resulting in inaccurate measurements and substandard performance. All instruments should be calibrated by trained, competent and approved personnel. Calibration intervals and error limits should be defined and records of the calibration results should be kept, maintaining instrument integrity. Neglecting calibration can result in unplanned production downtime, inferior products, or quality issues. In addition, allowing instruments that are critical to a process to drift out of specification could risk employee safety. The cost of calibration is normally insignificant compared to potential production or injury costs.

Calibration intervals as specified by the manufacturer are normally followed until the user can assign calibration intervals based on the history of previous calibration results. In addition, calibration is often required with a new instrument, or when an instrument may have been subjected to an unexpected shock or vibration that may have put it out of its specified limits.

Different types of pressure measurement exist. These include gauge pressure, vacuum, absolute, barometric, and differential pressure. Gauges are available for each of the above types of pressures, as well as for compound pressure which indicates pressure or vacuum on the same dial. For the calibration information below, we will use gauge pressure, the most common type.

Listed below are the most common factors that may influence the calibration of gauges in the class 0,25%, 1% and 1,6%.

Accuracy class: Pressure gauges are manufactured most commonly as per EN 837 accuracy classes from 0,1% to 0,4% of range. The class indicates the allowable percentage error of the full-scale value of the gauge. When calibrating, all values reported should be within the class of the gauge. The following accuracies normally apply: for dial sizes 40 mm and 50 mm, class 2,5%; for 63 mm class 1,6%; and for 100 mm and 160 mm class 1%. For reference test gauges with mirror scales, the norm is 0,25% accuracy.

Pressure media and adiabatic effect: Lower pressure gauges are normally calibrated with air and higher pressure gauges are calibrated with liquid. For pressures below 40 kPa, gases such as nitrogen or air are the preferred media.

Gas is also practical for use for pressures up to 6000 kPa, as long as the adiabatic cooling effect is eliminated. The adiabatic cooling effect occurs when gas is rapidly pressurised in a closed system. The gas heats up and expands in volume, resulting in a higher pressure reading than after it has been allowed to cool down and stabilise. Readings should only be taken after allowing the gas to cool down and the system to stabilise. For pressures above 60 kPa, water or oil may be used as a pressure media.

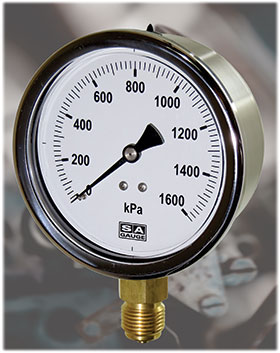

Pressurising the gauge: The most common pressure gauges consist of a mechanical element linked to a mechanical movement with screws or rivets. Pressurise and vent the gauge three times before calibration to ensure repeatable values can be obtained. Each time check for drag or pointer stickiness.

Reading the pressure: Different dial sizes and scale ranges result in varying degrees of difficulty when taking pressure readings. All dials have major and minor scale markings and the distance between the resolution marks is determined by the gauge dial size, the range of the gauge and the class of the gauge.

Standard practice is to apply pressure to the gauge under test until the pointer lines up perfectly on a graduation, and then take the reading on the more accurate reference instrument that should have a better resolution. It is also important to avoid parallax errors when taking readings. Most test gauges have a mirror dial to assist the operator to line up the reflection of the pointer with the actual pointer.

Hysteresis: Hysteresis exists in all mechanical pressure gauges. This is the difference in value at the same calibration point but in opposing directions. Take a reading at a point when the pressure rises and again at the same point with the pressure falling. The difference in value will be the hysteresis. Gentle tapping on the gauge to release any friction is considered standard practice and is recommended.

For more information contact Chris du Plessis, SA Gauge, 086 000 7911, chris@sagauge.com, www.sagauge.com
